A Step-by-Step Guide to Fixing Broken VHS Tapes

by Augustus Callen

VHS tapes were once the go-to medium for preserving cherished memories and favorite movies. But as digital formats replaced technology advanced, these relics from the past. As a result, many people find themselves with broken or damaged VHS tapes that they want to restore and preserve.

If you’re one of them, this step-by-step guide will help you fix your broken VHS tapes and convert them to a digital format to continue enjoying your memories.

Materials Needed

Before you begin the process of fixing your broken VHS tapes, you’ll need to gather a few essential materials:

A clean, lint-free cloth

This is necessary for cleaning the exterior of the VHS cassette and the tape itself if needed. Using a lint-free cloth ensures no debris is left behind on the tape or cassette, which could cause further damage or playback issues.

Isopropyl alcohol

Isopropyl alcohol is used for cleaning the tape heads and other components inside the VCR. It is an effective cleaning agent that evaporates quickly and leaves no residue, helping to improve the playback quality of your VHS tapes.

A small flat-head screwdriver

This tool is essential for opening the VHS cassette to access the tape inside. A small flat-head screwdriver is typically the right size to remove the screws that hold the cassette together and to pry the two halves apart without causing damage.

Clear tape or VHS tape repair kit

In the case of damaged or torn tape, clear tape or a VHS tape repair kit is needed to splice the tape back together. Clear tape is a temporary solution, while a VHS tape repair kit provides a more professional and long-lasting fix.

A functioning VC

A working VCR is necessary for playing back your VHS tapes during the repair process and for the digital conversion step. The VCR must be in good working order to ensure proper playback of your tapes and prevent further damage.

A capture device and software for digitizing your VHS tapes

A capture device, such as a video capture card or a USB capture device, is required to convert the analog signal from your VHS tapes into a digital format that can be saved on your computer.

With these materials, you can assess the damage and begin the repair process.

Assessing the Damage

The first step in fixing a broken VHS tape is to determine the extent of the damage. Inspect the cassette for any visible issues, such as cracks in the casing, mold on the tape, or broken or loose parts inside.

If the tape is visibly damaged, you may need to replace the cassette shell or splice the tape back together. If the damage is limited to the casing, you can repair the tape.

Repairing the Tape

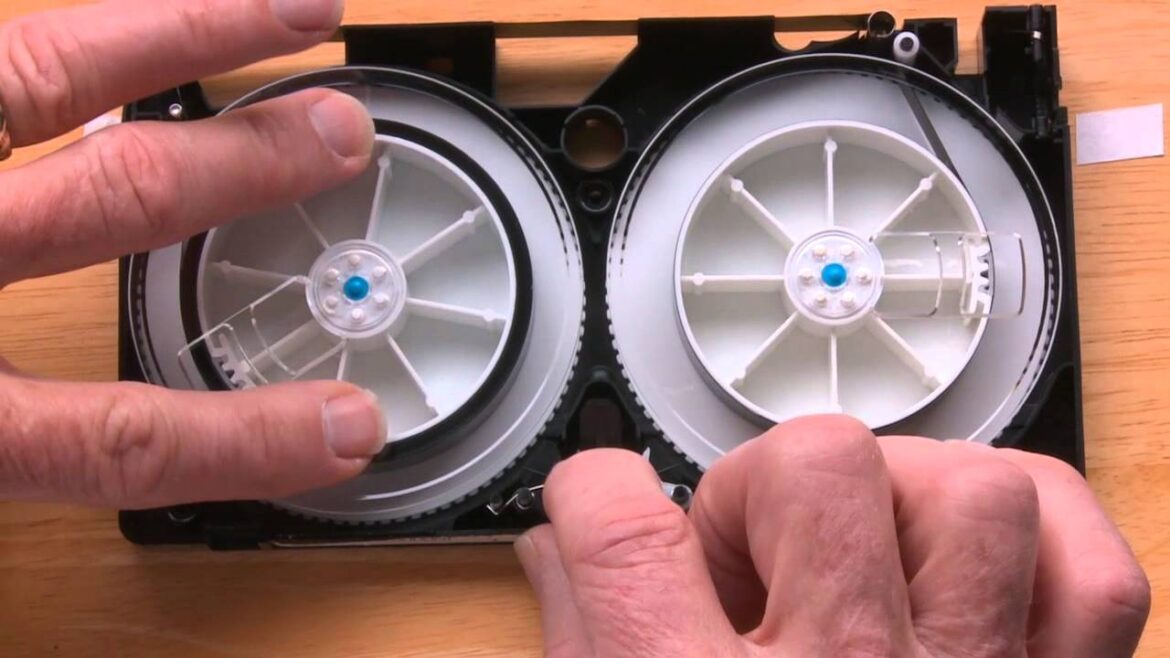

  1. Open the VHS cassette: Carefully remove the screws holding the cassette together using the flat-head screwdriver. Once the screws are removed, gently pry the two halves of the cassette apart, careful not to damage the inside tape.
  2. Inspect the tape: With the cassette open, examine the tape for any signs of damage or wear. Look for wrinkles, creases, or tears in the tape, and check the reel to ensure it’s wound correctly.
  3. Repair damaged tape: If the tape is torn or damaged, you’ll need to splice it back together using clear tape or a VHS tape repair kit. Carefully cut away the damaged section of the tape, align the two ends, and join them together using the clear tape or splicing tape from the repair kit.
  4. Reassemble the cassette: Once the tape is repaired, carefully rewind the tape onto the reels and reassemble the cassette. Replace the screws and ensure the cassette closes securely.

Digital Conversion

Now that you’re finished your repairs, it’s time to digitize your VHS tapes. This process involves connecting your VCR to a capture device, which will convert the analog signal from the VHS tape into a digital format.

Here’s how to do it:

Connect your VCR to the capture device

Using the appropriate cables, connect your VCR’s output to the input of the capture device. Ensure that both devices are powered on and functioning correctly.

Set up the capture software

Install the capture software on your computer, and follow the instructions to configure the settings for recording. This may include selecting the input source, video format, and audio settings.

Play the VHS tape and record

Insert the repaired VHS tape into the VCR and press play. On your computer, start the capture software and begin recording. Monitor the playback and recording process to ensure everything is working correctly.

Save and edit the digital file

Once the recording is complete, save the digital file to your computer. You can then use video editing software to trim, enhance, and edit the footage as needed.

Prevention Techniques

Now that you’ve successfully repaired and digitized your VHS tapes, it’s essential to take preventive measures to ensure the longevity of your memories and avoid future damage.

Here are some helpful tips to keep your VHS tapes in good condition:

Store VHS tapes properly

Store your tapes in a cool, dry, and dark environment, away from direct sunlight, heat, and humidity. Keep them in their original cases or protective sleeves to prevent dust and debris from accumulating on the tape.

Handle tapes with care

When handling VHS tapes, avoid touching the tape itself, as oils and dirt from your hands can damage the magnetic coating. Hold the cassette by the edges and gently insert and remove it from the VCR.

Regularly clean your VCR

Cleaning your VCR’s tape heads and components with isopropyl alcohol can help maintain optimal playback quality and prevent damage to your tapes. Follow the manufacturer’s instructions for proper cleaning procedures.

Rewind and fast-forward tapes periodically

Occasionally, rewinding and fast-forwarding your tapes can help maintain tape tension and prevent the tape from sticking to itself or the reels, which can lead to damage.

Conclusion

Restoring and preserving your cherished memories is a worthwhile endeavor. Following this step-by-step guide, you can successfully fix your broken VHS tapes and convert them to a digital format.

Converting VHS tapes to digital format breathes new life into your memories and ensures they are safeguarded for future generations to enjoy.

By understanding the repair process and employing preventive measures, you can maintain your tapes’ integrity and continue reliving those precious moments.
